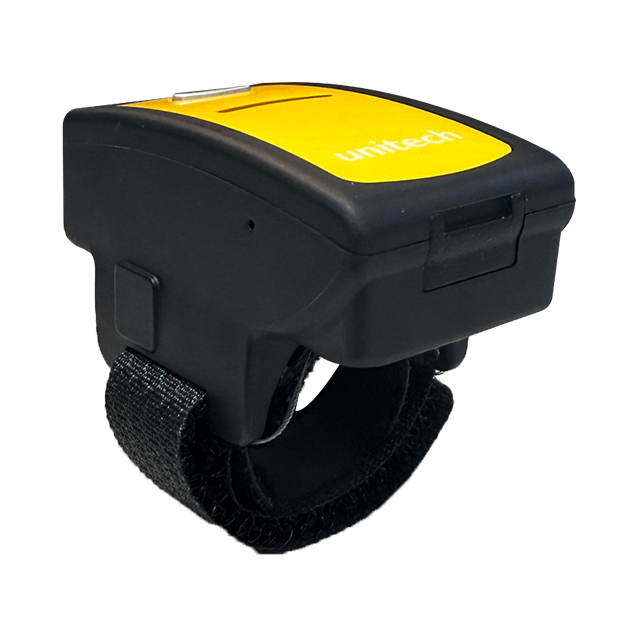

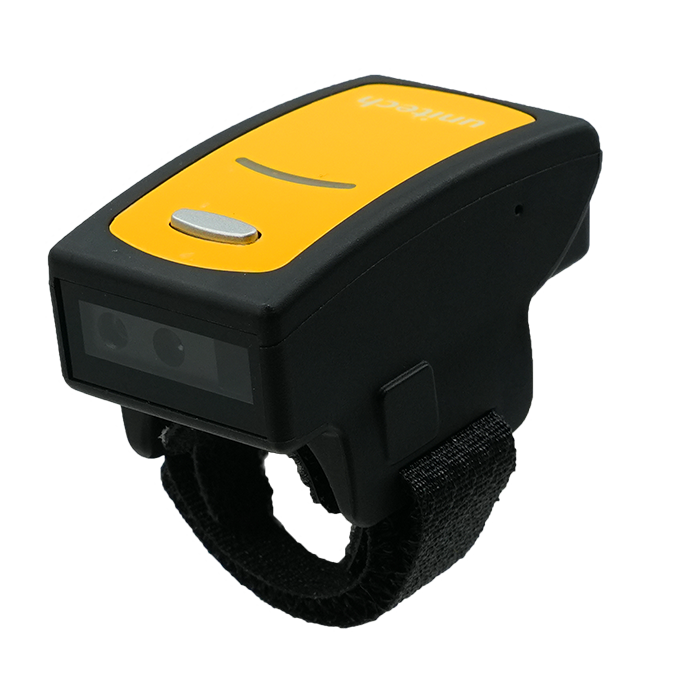

The MS626 Plus is an ultra-lightweight, wearable 2D scanner that delivers fast 120 fps performance in a comfortable, hands-free design. Built with IP42 protection and 1.5 m drop resistance, it reliably supports daily tasks across retail, hospitality, warehousing, and field service environments.
Features
• Ultra-lightweight and comfortable wearable design (only 19.4 g)
• High-speed 2D scanning performance: up to 120 fps
• Supports left- or right-hand operation for user flexibility
• Glove-friendly touch-activated trigger button for industrial environments
• IP42-rated with 1.5 m drop resistance
• Reads 1D and 2D barcodes, including digital codes on mobile or LCD screens
• Wireless connectivity for mobile workflows (Bluetooth 5.0)
• LED and buzzer indicators for instant decode feedback
• Full-shift battery life, with up to 5 hours per charge
Lightweight and Ergonomic Design
Weighing just 19.4 grams, the MS626 Plus features an ultra-lightweight, ergonomic design that delivers exceptional comfort during long hours of use. Its user-friendly form reduces fatigue and supports effortless, all-day operation—making it an ideal choice for mobility-driven environments such as retail, hospitality, warehousing, and field service.

Superior 2D Scanning Performance
The MS626 Plus combines a high-speed decoder with an advanced scanning engine to deliver exceptional performance. This powerful integration enables a scan rate of up to 120 fps, along with high-density barcode capture down to 3 mil and a scanning width of up to 75 mm. Designed for fast and accurate reading even in motion, the MS626 Plus reliably decodes most 1D and 2D barcodes—including those displayed on mobile device screens.

Hands-Free Operation
The MS626 Plus enhances operational flexibility with its comfortable, hands-free wearable design. Adaptable for both left- and right-handed users, it allows seamless hand-switching to reduce fatigue and maintain consistent productivity during long shifts. A touch-activated trigger key further supports effortless operation—even when wearing gloves—helping users stay efficient and protected as they work. Its ergonomic design aligns with the needs of fast-paced environments where mobility and continuous performance are essential.

Flexible Wireless Communication
Featuring Bluetooth 5.0 dual-mode connectivity, the MS626 Plus delivers stable and responsive wireless performance with a range of up to 20 meters in line-of-sight conditions. This reliable connection allows users to move freely throughout their workspace while maintaining uninterrupted data transmission. Whether working on the go or away from their primary station, the MS626 Plus supports sustained productivity through continuous, cable-free operation.

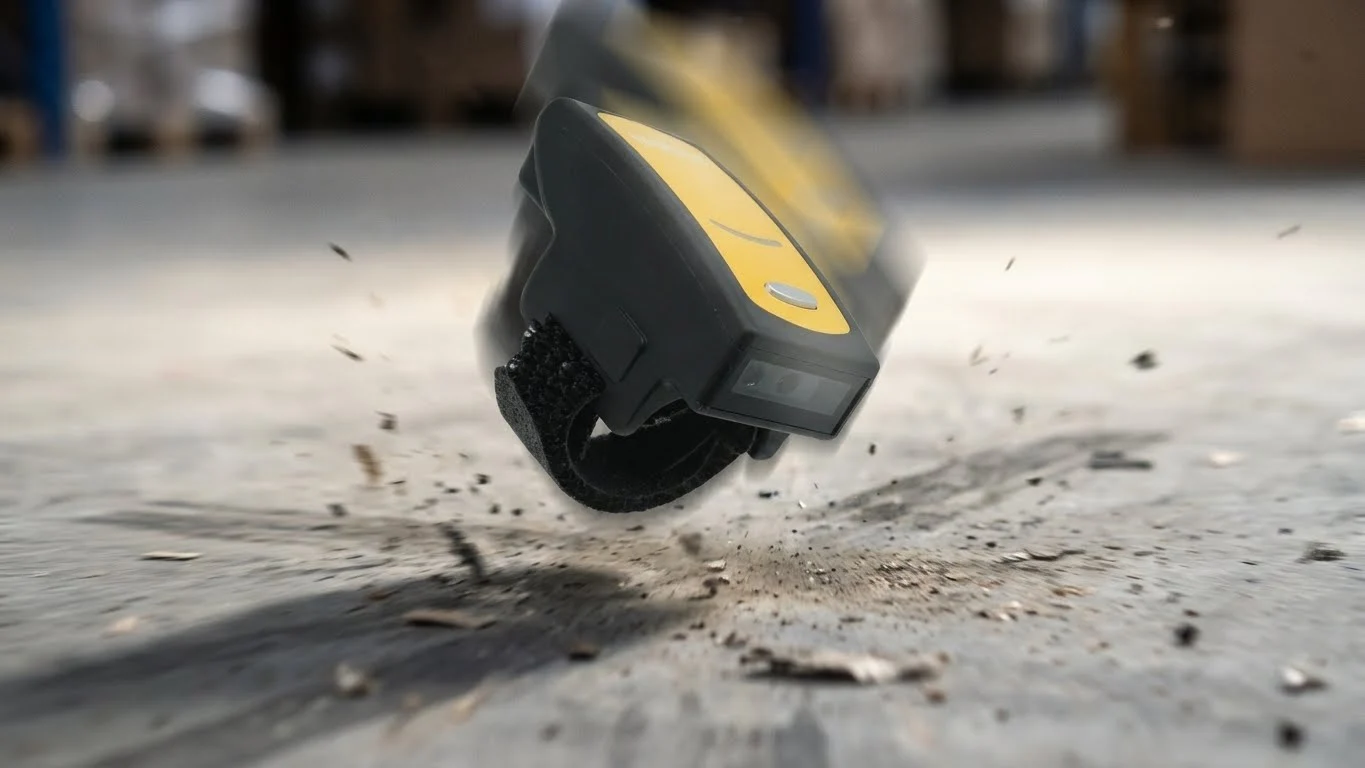

Compact but Durable
Despite its compact and lightweight build, the MS626 Plus is engineered to endure the rigors of everyday use. With an IP42 rating and 1.5-meter drop resistance, it provides solid protection against dust, moisture, and accidental impacts—ensuring long-lasting reliability in demanding work environments.

Specification
System
- Memory 2MB
Optical & Performance
- Sensor 640 x 480 pixels
- Aiming Element Red LED
- Illumination White LED
- Ambient Light 100,000 Lux (Sunlight)
- Scan Rate 120fps
- Skew Angle ±55°
- Pitch Angle Sensor ±55°
- Roll Angle 360°
- Field of View 43° horizontal, 33° vertical
- Optical Resolution 3mil/ 0.075m
- Printing Contrast Scale 10%
-
Depth of Field
5 mil Code39: 50 ~ 150mm
13 mil UPC/EAN: 65 ~ 315mm
15 mil QR Code: 35 ~ 175mm
6.67 mil PDF417: 55 ~ 120mm
10 mil Data Matrix: 50 ~ 120mm
Communication
- Radio Bluetooth 5.0 dual mode (Class 2)
- Wireless Coverage 66 ft/ 20m (line of sight)
- Host Interface supported BT HID, BT SPP, USB HID, USB VCP
Mechanical
- Dimension 27.6(W) x 46.2(L) x 26.8(H) mm
- Weight 19.4g
Symbologies
- 1D Barcodes Code 128, EAN-13, EAN8-, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI Plessey, GS1 Databar, Febraban, Composite
- 2D Barcodes QR Code. Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, HanXin, Dotcode
Electrical
- Operation Voltage 3.7 VDC ± 5%
-
Current Consumption
Working Current: < 210mA
Standby Current: < 25mA - Indicator LED, Buzzer
- Battery Capacity 3.7V, 240mAh
Environmental
- ESD Protection Functional after 4KV contact, 8KV Air discharge
- Mechanical Shock 1.5M onto concrete
- Operating Temperature -10°C ~ 50˚C
- Storage Temperature -20°C ~ 60˚C
- Relative Humidity 0% ~ 95%RH (Non-condensing)
- IP Rating IP42
- Charging Temperature 10°C~ 45˚C
Accessories
-
Items
■ USB Type-C cable
■ Velcro Strap
Regulatory Approvals
- Regulatory Approvals CE, FCC, TELEC, VCCI, NCC, BSMI
What comes in the box
-
The standard package contents
■ MS626 Plus Scanner
■ USB Type-C cable
■ Velcro Strap
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
