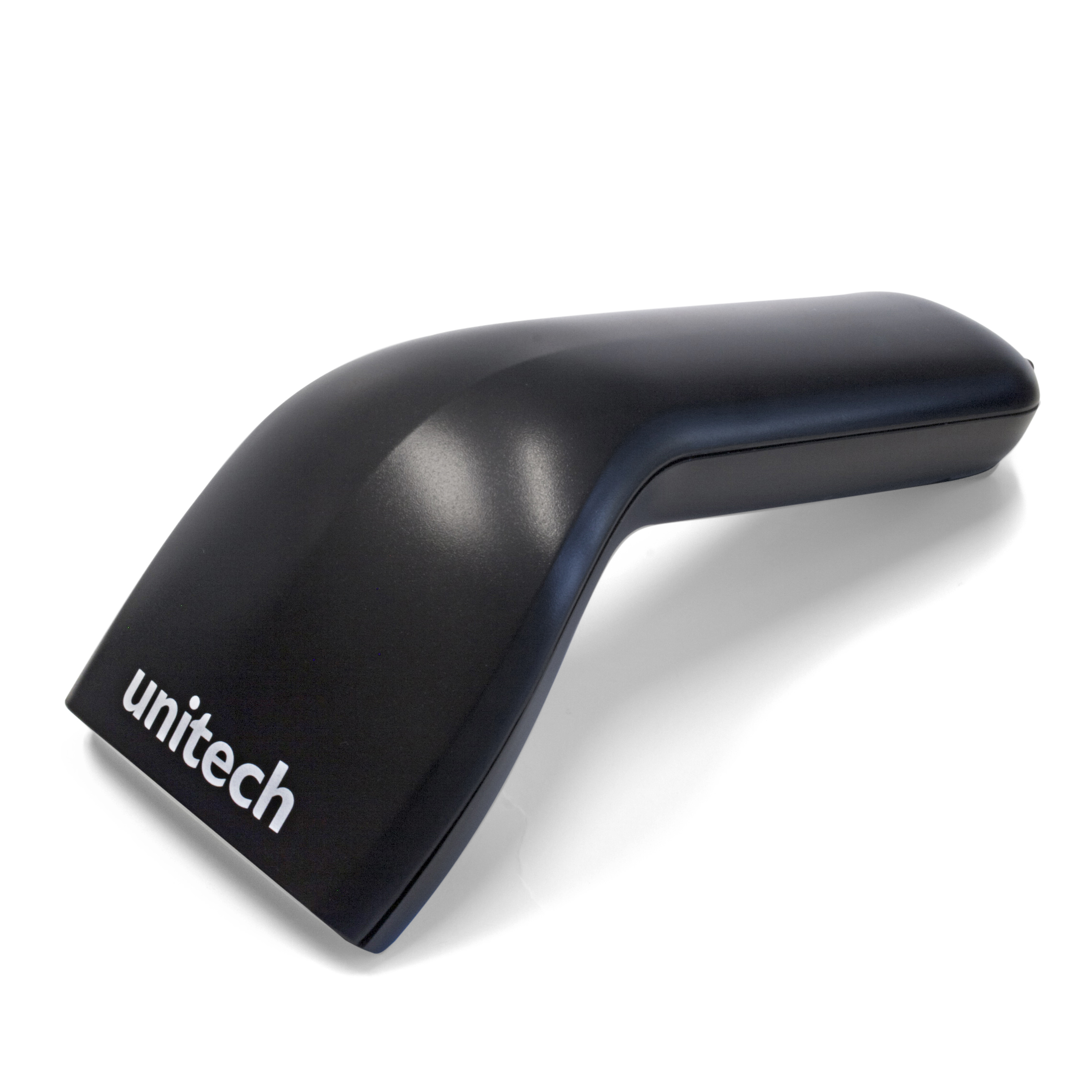

AS10

Basic Handheld Contact Scanner (1D)

The AS10 is a cost-effective CCD contact scanner designed for simple and reliable 1D barcode scanning. With a durable, no-moving-parts design, it delivers consistent performance for everyday retail and business applications.

  • 1D CCD

An affordably priced 1D CCD scanner designed for retail, libraries, government facilities, and event ticketing applications—featuring a durable, no-moving-parts design for reliable everyday performance.



Operator profile

Compatible with Clover POS Devices

Make retail transactions and purchases a cinch with Clover + Unitech! Our AS10 barcode scanners have been tested and approved by Clover to seamlessly pair with Clover POS devices. Scan 1D linear barcodes with the AS10 and view instant data on Clover device screens.





Features

• CCD-based linear imager with no moving parts for improved durability

• Reliable scanning for standard 1D barcode applications

• Easy plug-and-play operation with minimal setup

• Supports most commonly used 1D barcode symbologies

• Ergonomic and lightweight design for everyday use

• Cost-effective solution for entry-level scanning needs

• 2-year warranty

Reliable Contact Scanning for Everyday Use

The AS10 uses CCD technology to capture barcode data reliably, ensuring stable performance for everyday scanning tasks. Its simple and efficient decoding capability helps reduce errors and improve workflow efficiency in basic applications.

Cost-Effective Solution for Basic Applications

The AS10 barcode scanner is not only on task, it’s on budget. This scanner offers strong value for cost-sensitive applications. For applications focused on basic 1D barcode scanning, the AS10 provides a more economical alternative to advanced scanning solutions.

Easy Plug-and-Play Operation

The AS10 features easy plug-and-play functionality, allowing quick deployment with minimal setup. Designed for simple, everyday use, the AS10 delivers reliable scanning performance for standard 1D barcode applications.

Durable Design with No Moving Parts

Built with CCD technology and no moving parts, the AS10 offers improved durability for everyday use. This solid-state design reduces mechanical wear, making it a reliable choice for basic scanning environments.

TAA Compliant Barcode Scanners



Specification

Optical & Performance

  • Ambient Light 5000 Lux Max.
  • Scan Rate 100 scans/sec
  • Depth of Field 2.375 in.

Communication

  • Host Interface supported RS232, KBW, USB

Mechanical

  • Dimension 7 in x 3 in x 2.4 in (H x W x D)
    177 mm x 75 mm x 61 mm
  • Weight 4.2 oz.
    120 g (without cable)

Symbologies

  • 1D Barcodes GS1 DataBar, UPC / EAN / JAN,Code 39, EAN128, Full ASCII, Code 128, Interleave 25, Matrix 25, CODABAR / NW7, Code11, MSI / PLESSEY, Code93, China Postage, Code 32 / Italian Phammacy

Electrical

  • Operation Voltage DC +5V
  • Current Consumption 80mA
  • Indicator Beeper

Environmental

  • Mechanical Shock 4 feet
    (1.2 m)
  • Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
  • Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F)
  • Relative Humidity 20% to 95% (Non-Condensing)

Warranty

  • Hardware Warranty 24 months
  • Statement This product is warranted against defects in workmanship and materials for a period of two years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
