PA726MCA
Mobile Clinical Assistant
The PA726MCA is an ideal Mobile Clinical Assistant for nursing care.
-
Android 7.1
-
2D
-
4.7"
-
Pogo pins
-
4G LTE
-
IP65
-
1.8 m
-
Healthcare
The PA726MCA is an ideal Mobile Clinical Assistant (MCA) specially designed for nursing care in hospitals and healthcare institutes. Featuring anti-microbial housing design, it is specially to be used friendly in healthcare environments following high hygienic regulations.
Features
• 4.7 inch Gorilla Glass 3 touchscreen with 7H hardness to keep it scratch free
• Anti-microbial housing design
• Integrate 1D/2D barcode scanner with downwards scanning angle design
• 1.5M drop-resistant housing (1.8M with bumper)
• IP65 heavy-duty protection against water and dust
• Leading 4G dual SIM card enterprise handheld computer
• Rugged pogo-pin design protects the handheld from the wear and tear of frequent charging and docking.
• Leading 4G dual SIM card enterprise handheld computer
• Support WLAN: Dual Bands with fast roaming & WWAN: 2G/3G/4G LTE with full bands
• Easy Hot-swap battery design without downtime
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, 42Gears, 12Management and MoboLink
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/TouchComputers
|
|
Ethanol Safe and Anti-Microbial Devices |
||||||
|
|||||||
Ideal Mobile Clinical Assistant (MCA) for nursing care
The PA726MCA is an ideal Mobile Clinical Assistant (MCA) specially designed for nursing care in hospitals and healthcare institutes. Featuring anti-microbial housing design, it is specially to be used friendly in healthcare environments following high hygienic regulations. Featuring Android 7.1.2 for best Android experience, it combines the form factor of a 4G dual SIM card smartphone with the performance of an enterprise handheld computer. Stylish and intuitive along with an integrated 1D/2D barcode scanner, the healthcare givers may use this device to check patient identification and prescription orders through bar code and RFID tag technology so to ensure correct medication, dosage, and patient identification before medicines are administrated to patients. PA726MCA is truly an excellent tool offers extension of mobility to significantly improve job efficiency and patient safety for seamless Point of Care.
Powerful Android 7.1.2 Platform
• The First 4.7 inch Android 7.1.2 rugged mobile computer
• Advanced 64-bit octa-core CPU (2GHz) with 3GB RAM and 32GB ROM
• 2GB of ROM is completely independent partition that delivers stable processes and flexible programs installation
Sheer Durability
• 1.5M drop-resistant housing (1.8M drop-resistance with bumper)
• IP65 heavy-duty protection against water and dust
• Rugged pogo-pin design protects the handheld from the wear and tear of frequent charging and docking.
Advanced Technology
• 4.7 inch Gorilla Glass 3 touchscreen with 7H hardness to keep it scratch free
• The sunlight-readable screen facilitates outdoor use without draining the battery.
Multiple Connectivity
• Leading 4G dual SIM card enterprise handheld computer
• Support WLAN : Dual Bands with fast roaming & WWAN: 2G/3G/4G LTE with full bands
Superior Data Collection
• Integrate 1D/2D barcode scanner with downwards scanning angle design
• High resolution 16MP full HD rear camera and 5 MP front camera
User-Friendly Functionality
• Easy Hot-swap battery design without downtime
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, 42Gears, 12Management and MoboLink
Especificación
Operation System
- OS Android 7.1.2
- CPU 2GHz, Qualcomm MSM8953 Octa Core Processor, 64bits
- Memory 3 GB RAM / 32 GB Flash
- Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
-
Others
Input Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size 4.7” Color LCD 1280X720 High Resolution Display
- Touch Panel Gorilla Glass 3 with 5-point Capacitive Touch Panel, 450 cd/m2 Brightness
Buttons / Keypad
-
Buttons / Keypad
4 Function Keys, Programmable key, Volume up/down key, Left/right
scan key, Power key
Camera
-
Camera
5 MP Front camera
16 MP Rear with LED flash and auto-focus function
Indicator Type
- Type LEDs, Vibrator
Symbologies
-
1D Barcodes
1D CCD (Optional) : UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39
Full ASCI, Code 93, Code 32, Interleaved & Std.
2 of 5, EAN 128, Code 11, MSI/Plessey, Code
128, RSS Expended, RSS Limited, RSS14 -
2D Barcodes
2D : PDF417, MicroPDF417, Composite, RSS,
TLC-39, Datamatrix, QR Code, Micro QR Code,
Aztec, MaxiCode, Postal Codes: US PostNet, US
Planet, UK Postal, Australian Postal, Japan Postal
Dutch Postal (KIX), and all 1D barcodes
DPM (Optional) : Direct-Part-Marked barcodes
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO/IEC15693, ISO/IEC14443A , ISO/IEC14443B
I/O Interfaces
- USB Micro USB
- OTG Yes, over Micro USB
- POGO PIN POGO PIN connector for Cradle
- SIM Slot Micro SIM slot x 2
- Expansion Slot MicroSD x 1,, up to 128 GB
- Audio Speaker 85 dB at 10cm, 3.5mm Audio Jack, Receiver, Microphone*2
Power Source
-

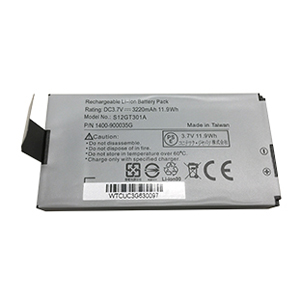

Main battery
Rechargable Li-ion Battery
3.6V 3220mAh - Extended battery 3.6V 4800mAh (optional)
- Hot Swap Yes
Communication
- Bluetooth® Bluetooth® 4.2
- WLAN IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, support fast roaming
-
WWAN
2G – GSM: GSM850, EGSM900, DCS1800,PCS1900
3G – UMTS: Band 1, Band 2, Band 5, Band 8
4G –LTE: FDD Band 1(2100), Band 2(1900), Band 3(1800),
Band 4(1700), Band 5(850), Band 7(2600), Band 8(900), Band
20(800)
TDD: Band 38(2600), Band 39(1900), Band 40(2300), Band
41(2500), Micro SIM slot *2 - GPS GPS/ GLONASS
Software
- MDM Software SOTI, AirWatch, 42Gears, 12Manage, and MoboLink
Enclosure
- Housing Anti-microbial Housing
- Dimensions ( W x H x D ) 171.3mm x 80mm x 29.3mm
- Weight 287g (with standard battery)
Durability
-
Drop Specification
1.5 meter without bumper
1.8 meter with bumper - Sealing IP65 ( IP67 Optional )
- Tumble test MIL-STD-810G, 514.4 Process II
Environmental
- Operating temperature 4°F to 122°F (-20°C to 50°C)
- Storage temperature -22°F to 140°F (-30°C to 60°C)
- Relative Humidity 5% ~ 95% (Non-Condensing)
Accessories
-
Accessories

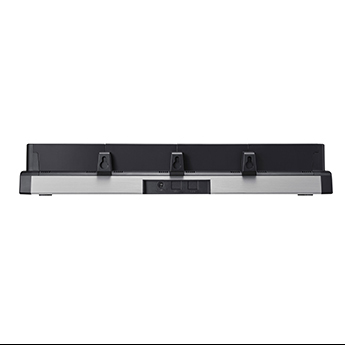

■ 4-slot Ethernet Cradle
■ 4-slot Terminal Charging Cradle

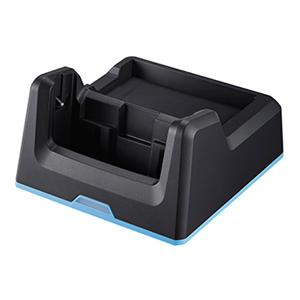

■ 1-slot USB Cradle

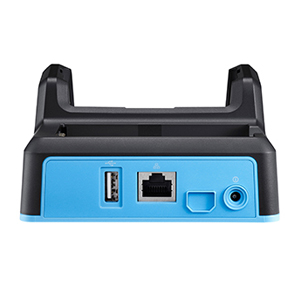

■ 1-slot Ethernet Cradle
■ 4-slot Battery Charger
■ Vehicle Charger
■ Tempered Glass Screen

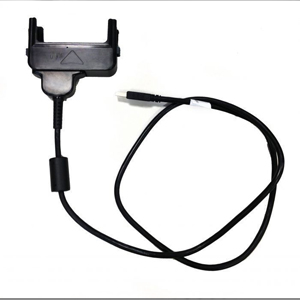

■ USB Holder Cable
■ Hand Strap w/ or w/o stylus loop
■ Stylus & Coiled Strap
■ Bumper
■ Gun Grip
■ Wrist-arm Mount
■ Holster with Belt Strap
What comes in the box
-
The standard package contents
■ PA726MCA Terminal
■ Battery
■ Hand Strap
■ USB cable
■ Adaptor with plugs -
The basic package contents
■ PA726MCA Terminal
■ Battery
■ Hand Strap
Regulatory Approvals
- Regulatory Approvals CE, FCC, NBTC, NCC, BSMI, VCCI, CCC, RoHS
Warranty
- Hardware Warranty 15 months
