HT730UHF

RFID Rugged Handheld Terminal

15m Read Range | 6700mAh with hot-swap battery | IMPINJ R2000

  • Android 10

  • 2D

  • 4

  • Teclado

  • UHF RFID

  • 13MP

  • IP65

  • 1.8M

  • Bluetooth

  • Certificación GMS

  • Logística

  • Almacén

  • Servicio de campo

  • Manufactura

The HT730 UHF is an omnidirectional 15M-read-range RFID terminal that reads 750 tags+ per second to let associates quickly access data when managing stock. With the sophisticated IMPINJ R2000 embedded chip, gaining clear visibility of assets and location is never a troublesome task. There’s no need to turn off the device, so your associates can still hot-swap 6700mAh battery on continuous work. An ultra-powerful RFID reader with resistance to dust and water and withstanding 1.8m drop is your best fit for warehousing, field service, and transportation & logistics.



Features

• Industry-leading 15M RFID read range
• High sensitivity and optimum chip: IMPINJ R2000
• Swappable smart battery with lasting 6700mAh capacity
• Perform 750+ tag reads per second
• Maximum EIRP of 36 dBm

• Support Hot-Swap function, keeps applications active up to 1 minute
• Integrated various WLAN connections: IEEE 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2 with 2X2 MU-MIMO WLAN Standard
• Wirelessly connect with Bluetooth® 5.1
• Ultra-sensitive 4” display touch screen
• Balanced, ergonomic, and robust gun grip design
• Enterprise-durable protection with IP65 protection and 1.8m drop to concrete

Ultra-powerful RFID Reader to Boost Efficiency





The best-in-class RFID reader is designed for the extended reading range up to 15 meters, offering data in real-time and facilitating better traceability of the product. The highly-sensitive chip, IMPINJ R2000, can read multiple UHF tags simultaneously and further accelerate the entire shipping and goods validation process.
Maximum 36 EIRP dBm power reads most RFID tags like EPC Global Class 1 Gen 2 and ISO 18000-6C compliant within the global frequency range between 865MHz and 928MHz (US/EU/JP/TW/CN). On the logistics cycle, the HT730 UHF reader keeps the process going faster and on time.




Global Frequency
865MHz - 928MHz		 15m
Reading Distance		 EIRP 36dBm
Maximum

Continuous Work with Fast Read Rate



Driving up productivity with more tag reads per second, HT730 UHF performs at least 750 reads to undertake high-volume data on the site of a large distribution center. It eliminates the manual work to check parcels on loading pallets and saves precious time to end-user delivery. The 6700mAnh battery runs operation up a whole
day to handle a packed schedule and can be easily swapped to proceed 24/7 working.







Advanced Connectivity for Instant Feedback


The 4-inch display provides more readability to view instant feedback while reading tags. The screen is easy to view indoors and outside, even in bright sunlight. Either connected with Bluetooth® 5.1 or a WLAN network, HT730 UHF allows users to quickly check misplaced or missing items on integrated Apps, such as TagAccess. It’s an easy-to-aim device that provides clear audible, tactile, and visual feedback on each read.





Enterprised-level protection


With a balanced and ergonomic gun grip design, HT730 UHF fits comfortably in your hand with a push-to-talk trigger and releases the strain on a long working shift. While it’s designed to be sleek, the reader is durable enough for field service teams that maintain infrastructure or logistics teams that carry on the parcel to our community. The IP65 enterprise-level protection against water and dust supports our everyday life workers with a rugged yet trustworthy tool.



Especificación

Model Numbers

  • SKUs HT730-ZA66UMBG
    HT730UHF, Android 10 with GMS, 2D engine, RFID UHF (US antenna, 902-928MHz), BT, WiFi, Camera, with 38-key keypad, with battery and hand strap

Operation System

  • OS Android 10 with GMS
  • CPU Qcta-core 2.3 GHz, Qualcomm 720G (SM7125)
  • Memory 4GB RAM / 64GB Flash
  • Languages support Multi-languages

Display

  • Screen Size 4”TFT-LCD WVGA (480x800) color screen (400 nits)
  • Touchpanel Ultra-sensitive capacitive touch screen, compatible with gloves and support wet resistance

Camera/Photos/Video

  • Camera Rear 13 MP Autofocus with flash

Keypad

  • Keypad Function Numeric (38 key) with backlight

Indicator

  • Type LED, Speaker, Vibrator

Symbologies

  • 2D Barcodes 2D

UHF RFID Performance

  • Reading Distance 15 m
  • Tag Read Rate 750+ tags/sec

Communication

  • Bluetooth® Bluetooth® 5.1
  • WLAN 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2
    (Dual Antenna, 2X2 MU-MIMO support)

Enclosure

  • Dimension 203 x 82.2 x 164.3 mm
  • Weight 750 g

Durability

  • Drop Specification 1.8 m
  • Sealing IP65

Environmental

  • Operating temperature -20°C to +50°C
  • Storage temperature - 30°C to 70°C (without battery)
  • Charging Temperature 0°C to 45°C
  • Relative Humidity 5% ~ 95% (non-condensing)
  • Electrostatic Discharge +/-15kV air discharge
    +/-8kV contact discharge

Power Source

  • Main battery 6,700mAh, 3.7V

Accessories

  • Accessories ■ USB 3.0 type-C cable(PN#1550-905908G)
    ■ Glass Screen Protector(PN#401609G)
    ■ Power Adaptor(PN#1010-900058G
    ■ Battery 3.7V 6700mAh (PN#1400-900061G)
    ■ Single Slot Charging cradle (PN#5000-900086G)
    ■ Single Slot Ethernet cradle (PN#5000-900087G)
    ■ 3-Pin Power Cord(US)PN#1010-601551G
    ■ 4-Slot Charging cradle(PN#5000-900089G)
    ■ 4-Slot Ethernet cradle(PN#5000-900091G)
    ■ 4-Slot battery charger (PN# 5100-900031G)
    ■ Stylus with coil strap (PN# 1979-900003G)

Warranty

  • Warranty 1 Year

Accesorios

USB 3.0 Type C-Cable for HT730

PN# 1550-905896G

Handstrap for HT730

PN# 608909G

HT730 Single Slot Charging Cradle with slot for spare battery, includes power supply

5000-900086G

HT730 4-Slot Charging Cradle, includes Power Supply

5000-900089G

HT730 Screen Protector

401609G

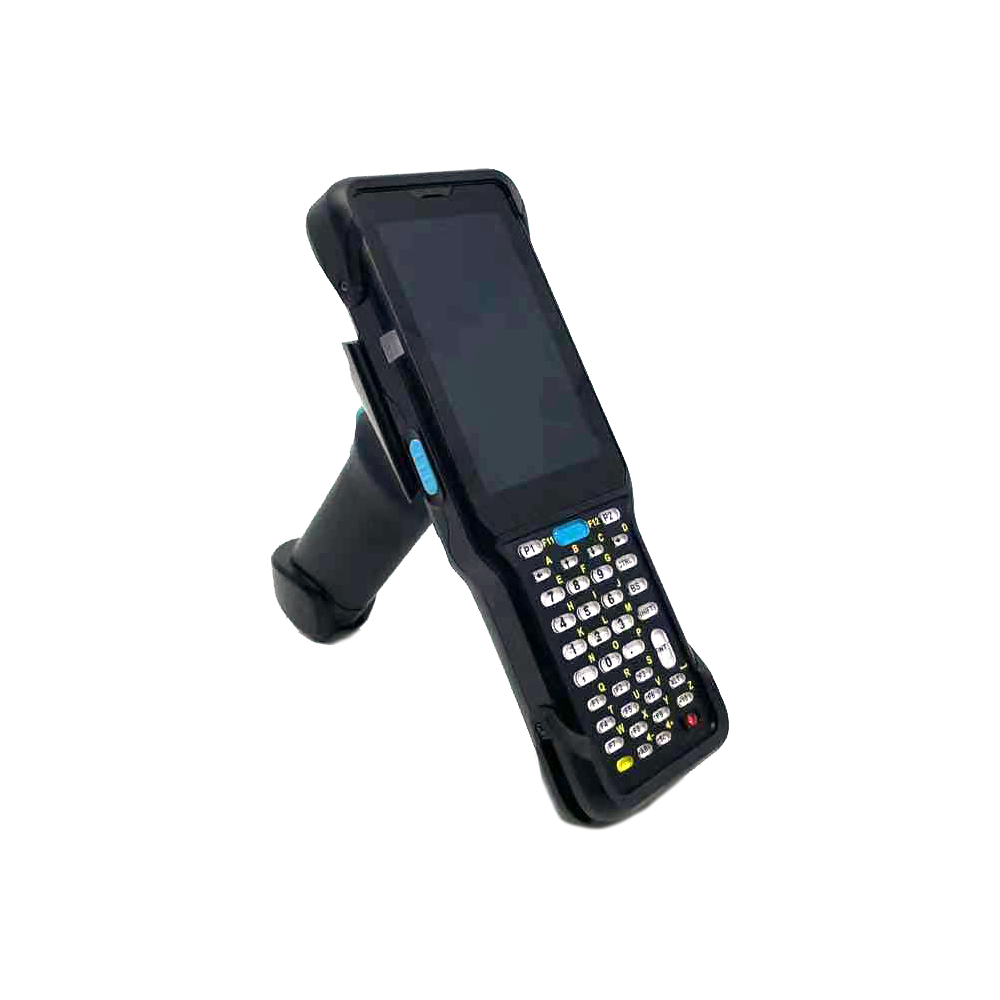

HT730 Standard Gun Grip

5500-900096G

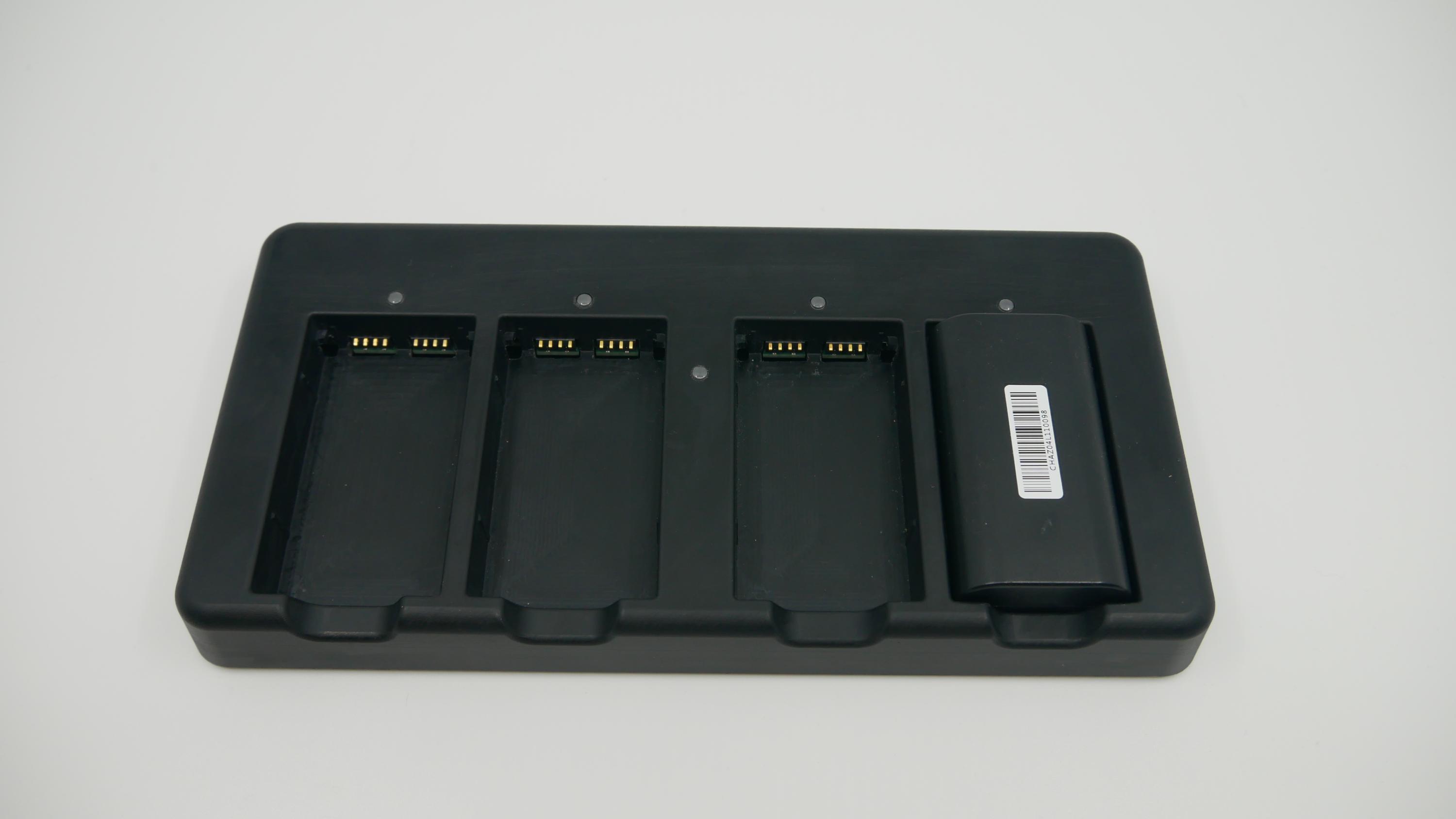

HT730 4-slot Battery Charge with power adapter

5100-900031G

HT730 4-slot Terminal Ethernet Cradle with power supply

5000-900091G
