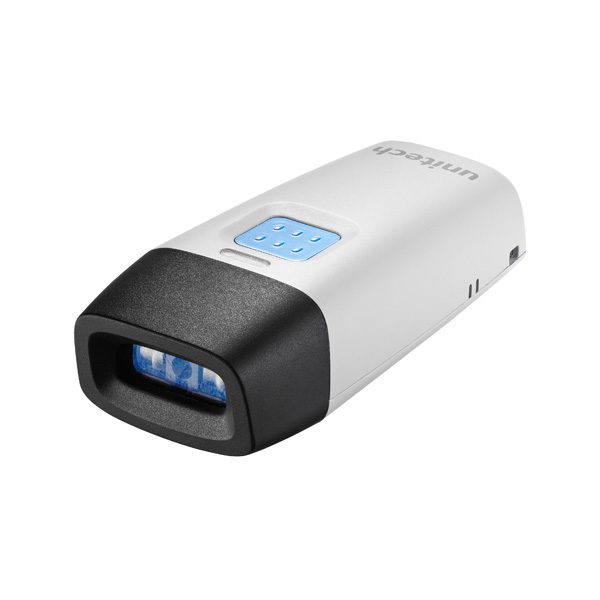

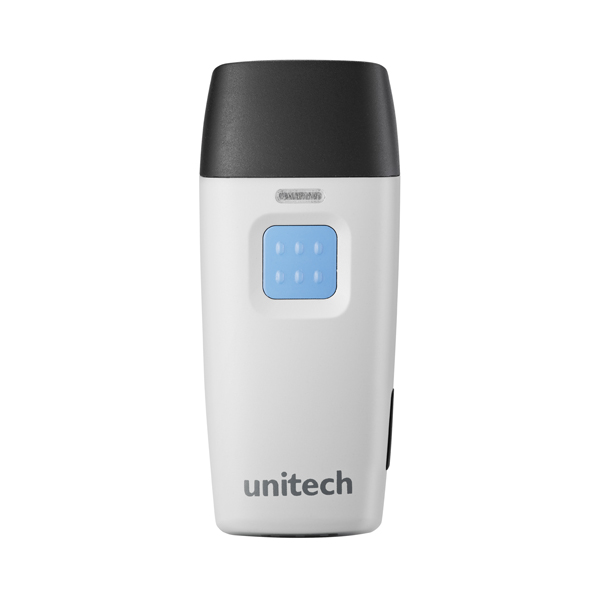

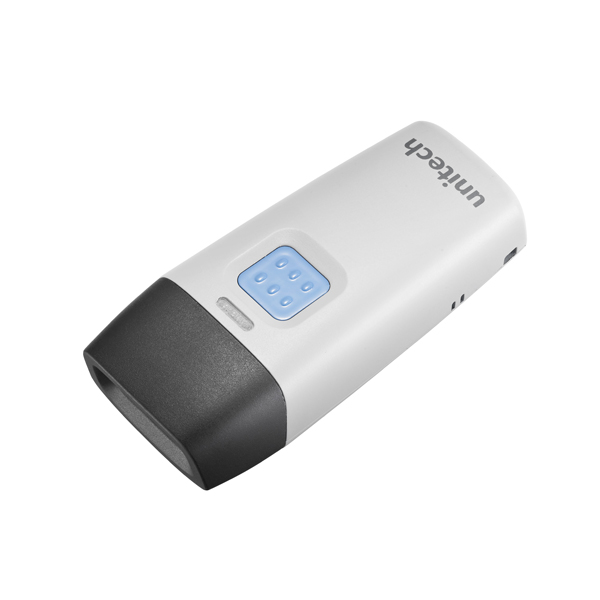

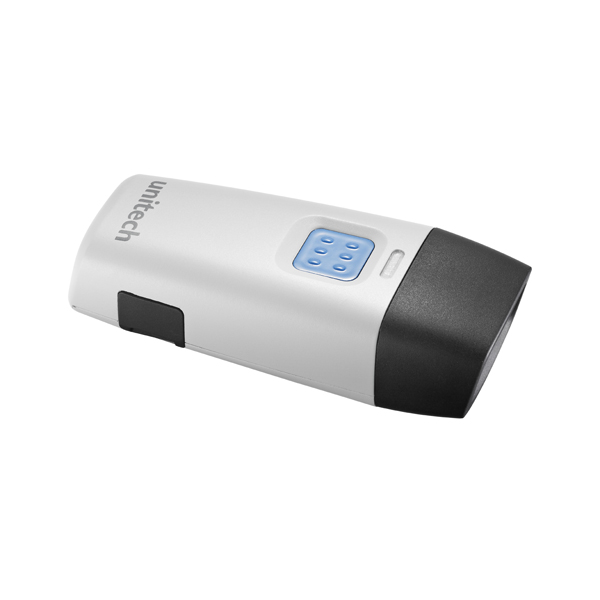

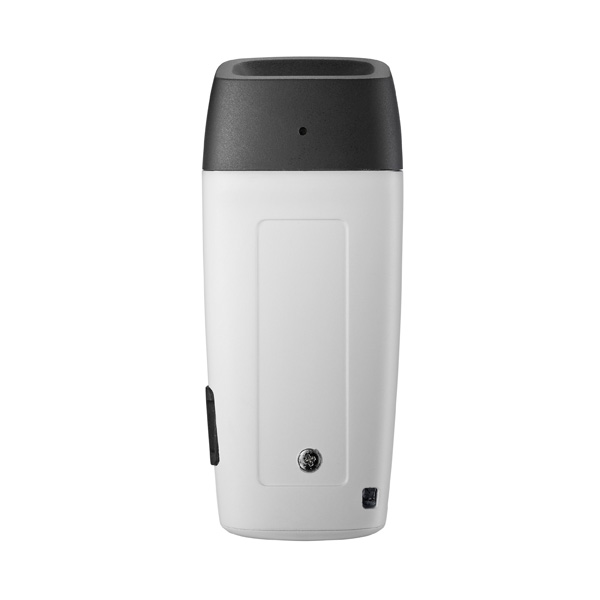

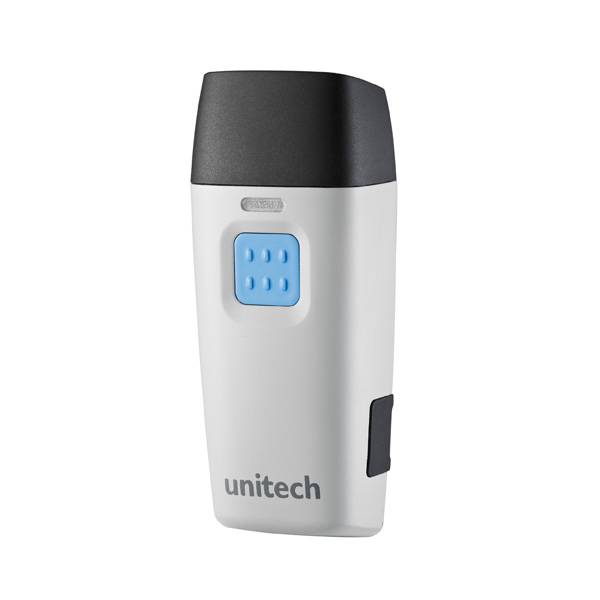

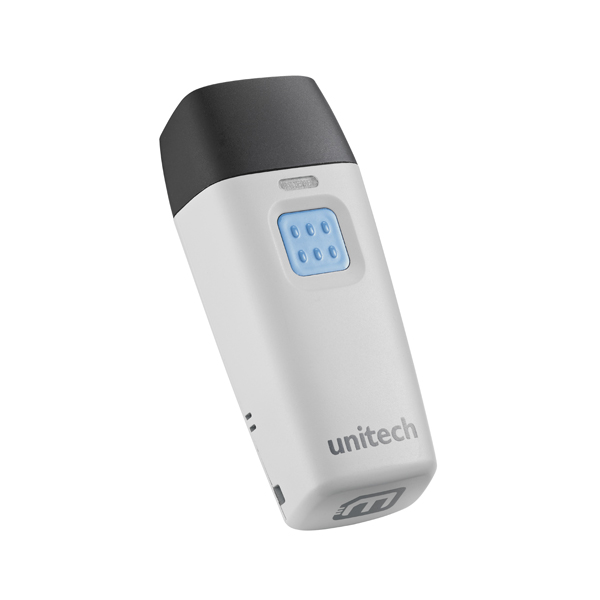

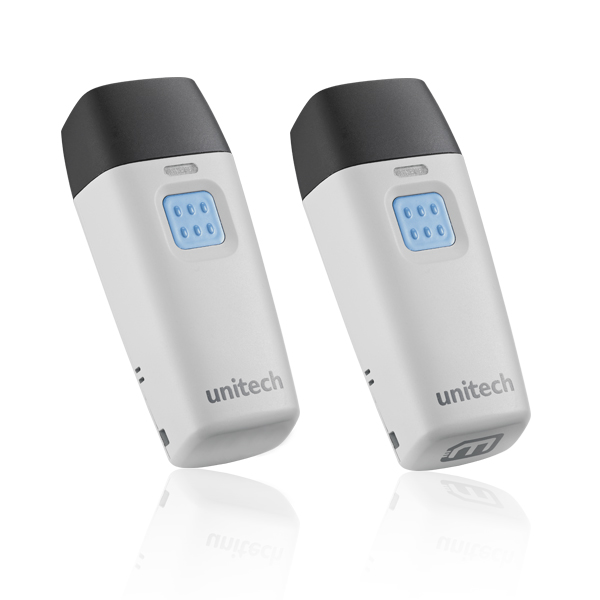

MS912 plus
Bluetooth CCD Pocket Scanner
The MS912+ is a 1D CCD pocket scanner features easy Bluetooth pairing to any smartphone, tablet, or computer.
-
Wireless
-
Bluetooth
-
1D CCD
-
Pocket Size
-
1.5M
-
Hospitality
-
Field Service
-
Healthcare
The MS912+ Bluetooth companion scanner is the way to go for mobile scanning. Tiny but powerful, the MS912+ features simple pairing to any smartphone, tablet, or computer with a new aggressive scan engine.
Features
• Small and compact design
• Mobility application by wireless data collection and transmit
• Support HID and SPP connection
• High capacity battery with long life
• Premium performance: Processing up to 4mil resolution barcode readability.
• Build in 650 scans/sec high performance CCD module
• Easy to integrate with host (Smart phone, Tablet & Laptop)
• Easily toggle the iPhone/ iPad touch keyboard with iOS Hotkey function
Ultra-portable and durable
The MS912+ features the high-speed decoder paired with an aggressive scan engine which provides outstanding scanning performance up to 650 scans per second. MS912+ also delivers a high quality barcode scanning experience that can capture 1D barcode data with a 4 mil resolution and a scanning width up to 140mm. The scanner has capability to scan barcodes on the screen of mobile phone and it can automatically capture barcodes within its field of view in any lighting conditions from darkness to direct sunlight (100,000 lux). Furthermore, the MS912+ weighs in at just 30.2g and is about the size of a single pack of gum. Not only with an ultra-compact size, but also it has a 1.5 meter drop threshold. Combining high performance and compact design, MS912+ gives mobile worker many places to keep it conveniently and safely while on the go.
Easy pairing with wireless technology

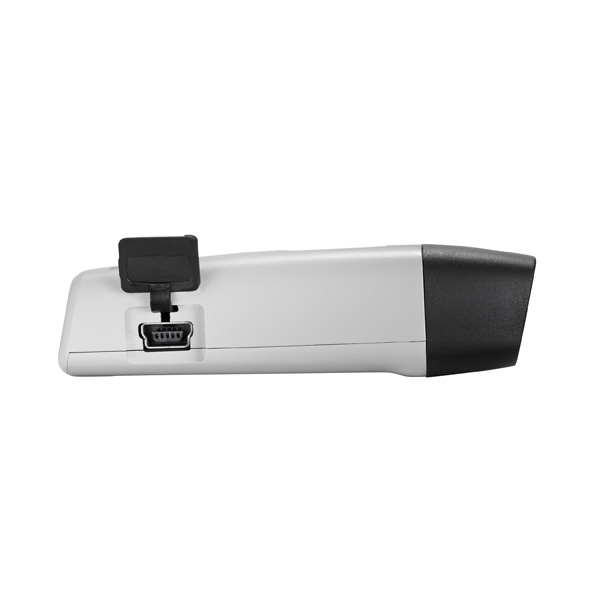

The MS912+ provides the convenience of wireless technology with the simplicity of a single-button scanning design which makes barcode data collection simple, reliable for all users. With wireless communications, MS912+ is easy to pair with your smart phone (including apple or android system) or tablet. Moreover, this device is available to facilitate a data transfer from scanner to computer via USB port and it delivers the flexibility with the 10 meters operating range that helps users to improve efficiency in mobile work place.
Extended Storage Capacity
Beyond its versatility, the MS912+ can be utilized with an auto mode that ensures no data is lost while it is out of range of the wireless signal, also upload the data to the back-end system with a simple setting, allowing users to complete their tasks without interruption. In addition, the MS912 series allows you to charge the internal Lithium-Ion battery by utilizing a standard USB port. With full compatibility to most every wireless enabled device, including Apple devices, it makes the MS912+ a best product for any mobile worker or business professional. There is no doubt that the compact MS912+ is an excellent auto data collection solution which is the smallest and smartest in its class.
Specification
System
-
Memory
2MB
Optical & Performance
-
Sensor
Linear CMOS
-
Aiming Element
625nm visible red LED
-
Ambient Light
100,000 Lux (Sunlight)
-
Scan Rate
650 Scans/ sec
-
Optical Resolution
4mil/ 0.1mm
140mm (13Mil Code39) -
Printing Contrast Scale
30% Minimum
-
Depth of Field
4 Mil Code 39 : 40 ~ 65 mm
5 Mil Code 39 : 35 ~ 90 mm
10 Mil Code 39 : 35 ~ 195 mm
15 Mil Code 39 : 50 ~ 280 mm
13 Mil UPC/EAN: 35 ~ 230 mm
Communication
-
Radio
Bluetooth® 2.1+EDR
-
Wireless Coverage
33 ft/ 10m (line of sight)
-
Interface/ Profile
BT HID, BT SPP, USB HID, USB VCP, Memory (MS912M+)
Mechanical
-
Dimension
H20*W30*L72mm
-
Weight
30.2g
Symbologies
-
1D Barcodes
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5,
Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
Electrical
-
Operation Voltage
3.7VDC ± 5% 6000 scans (1 scan/ 5 secs, PAN connected)
-
Current Consumption
Operation mode:< 500uA (MS912+)
-
Battery Type
3.7V, 350mAh, Lithium Battery
-
Operating Time
6000 scans
Environmental
-
ESD Protection
Functional after 4KV contact, 8KV Air discharge
-
Mechanical Shock
1.5M
-
Operating Temperature
0°C to 50°C
-
Storage Temperature
-20°C to 60°C
-
Relative Humidity
0%~95%RH (Non-condensing)
Regulatory Approvals
-
Regulatory Approvals
EMC: FCC Part15C, CE
Safety Approval :WEEE, RoHS 2.0, IEC 62471, NCC, TELEC,VCCI, BSMI
What comes in the box
-
The standard package contents
■MS912+ Scanner
■ USB cable (Micro USB),

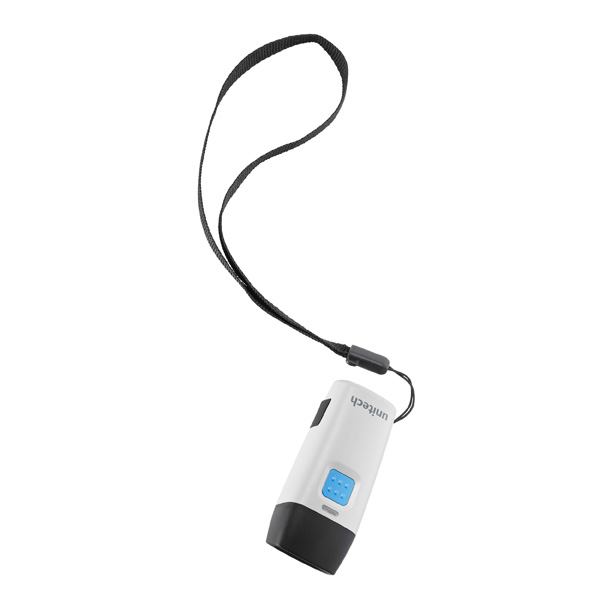

■ Hand strap
