HT330
4-inch Rugged Handheld Terminal
Android 12 with GMS certified | Removable 5200mAh battery (20 Working Hours) | IP67 rating & 1.5m drop
-
Android 12
-
4"
-
Keypad
-
4G LTE
-
13MP
-
5MP
-
IP67
-
1.5 m
-
GMS certified
-
Bluetooth
-
Retail
-
Logistics
-
Warehousing
-
Field Service
-
Manufacturing
As a reliable work companion, HT330 has been upgraded to the latest Android 12 OS system with GMS certification providing an intuitive and friendly interface to manage data effectively on a 4-inch screen. The removable 5200mAh Lithium-ion battery carries your task for over 20 hours, allowing a full shift to go on. Reaching IP67 enterprise protection and withstanding 1.5 drop makes HT330 a perfect tool to maximize data collection, management, and traceability in nearly every practice of retail, transportation& logistics, manufacturing, and more!
Features
• Android 12 OS with GMS certified
• Ergonomic one-handed operation
• Durable keypad with backlight: 32 keys with 2.5 million lifetime clicks
• 5200mAh battery for 20 hours of operation
• 1.5M drop-resistant housing (1.8M with bumper)
• IP67 protection against water and dust
• Support Bluetooth® 5.0
• Support MDM software and utilities such as MoboLink, SOTI, AirWatch, and 42Gears.
Real User Testimonials - Genuine Feedback from a customer in Europe
"We use this rugged handheld terminal at our European home decor brand, and it has significantly improved our operational efficiency. The compact and ergonomic design is easy to handle, and its lightweight nature allows for comfortable all-day use. The tilted scan engine enhances precision, and the long-lasting battery means we rarely need to recharge during the day. The durable keyboard with backlight is practical for our varied lighting environments, and the device's fast operating speed and effective scan performance consistently meet our demands. Price-wise, it outperforms competitors, offering great value. Our team, particularly our female staff, find it exceptionally user-friendly. It’s a reliable tool that effectively supports our daily activities."
Real User Testimonials - Genuine Feedback from a customer in Vietnam
"In our Vietnamese warehouse operations, we rely on Unitech for its competitively priced and reliable barcode scanning tools. Unitech stands out for its robust performance and excellent customer support, consistently meeting our needs better than mainland brands. Their products are practical, easy to use, and crucial for efficient inventory management.
Latest Android 12 with GMS certified
This high-performance HT330 featuring a powerful 2D engine has upgraded to Android 12 OS to empower staff with an easy-scan, simple-check convenience. The GMS certification allows staff to access a set of pre-installed apps and services meant to boost productivity. HT330 is the best choice of optimal data collection terminal for the retail and warehousing field.
Android 12 Operation System |
GMS Certification |
Octa-Core 2GHz |
1D 2D OCR
|
Extending Battery Capacity for All Day
A larger battery capacity of HT330 means fewer battery replacements and longer operation time. The removable 5200mAh Lithium-ion battery supports 20 working hours, making it a suitable device for intensive scanning scenarios, like inventory checks. The 3GB RAM/32GB Flash memory storage undertake a high volume of data even after hours. |
|||
|
|||
5200 mAh Li-ion Battery |
20 Hours Operation time |
3 GB RAM
32 GB Flash |
295 g |
Friendly Panel in Rugged Housing
The one-hand terminal combines a 4-inch touchscreen with 32 keys physical keypad, providing a flexible interface to satisfy industries’ requirements. Water-resistant, dust-proof, and enduring drop to 1.5 m, HT330 can handle all demanding environments. |
|||
4-inch Display |
32 Keys |
IP67 Certification |
One-Hand
|
Rich and Reliable Wireless Connection
The broader 4G standards and faster transmission synchronize information in real-time to ensure barrier-free communication. HT330 lays a foundation of instant visibility into what's happening and being done under 2.4G+5GHz bandwidth. The Bluetooth® 5.0 improves the connectivity of related pairing devices, and the GPS function further tracks location more precisely. |
|||||||
|
|||||||
4G |
Dual-Band Wi-Fi |
Bluetooth® 5.0 |
Dual Nano sim cards |
||||
|
|||||
Optical Character Recognition (OCR) |
|||||
|
|||||
HT330 provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.
|
|||||
|
|||||
Airline | Manufacturing | Logistics | |||
✔The Airline Ground Services|Read ID numbers from passports ✔Manufacturing|Read vehicle registration numbers and electronic chips ✔ Logistics&Retail|Read lot numbers printed on the package
|
Accessories Overview
Specification
Operation System
- OS Android 12
- GMS certified GMS certified
- CPU Qcta-core 2GHz
-
Memory
RAM 3GB
Flash 32GB - Security Supports Verified Boot
- Languages support Multi-languages
Display
- Screen Size 4”, WVGA 800 X 480, Backlight (450nits)
- Touch Panel Multi-touch panel, gloves and wet hands supported
Buttons / Keypad
- Buttons / Keypad Numeric (32 keys); number keys, function and direction keys with backlight
Camera
-
Camera
Rear 13 MP Autofocus with flash
5MP Front Camera
Indicator Type
- Type LED, Speaker, Vibrator
Barcode Scanner
- Default 2D Engine: Tilt Down 25 degree
Symbologies
- 1D Barcodes Support all major 1D barcodes
- 2D Barcodes Support all major 2D barcodes
RFID
-
HF RFID
Optional: Frequency 13.56Mhz, ISO14443A/B,
ISO15693 standard, NFC, MIFARE, Felica
I/O Interfaces
- USB USB 2.0 (Type-C)
- OTG Yes, over USB Type-C
-
POGO PIN
Pogo Pin Rear: Support Gun grip
Pogo Pin Bottom: Charging via cradle - SIM Slot Nano SIM Slot x 2
- Expansion Slot MicroSD memory card up to 256G
-
Audio
Speaker: 1W output, 90 dB at 10cm
MIC: 2 MIC design
Power Source
-
Main battery
3.85V 5200mAh Li-ION battery (removable),
Operating time : over 20 hours
(depending on the specific environment)
Communication
-
Bluetooth®
Bluetooth 5.0
-
WLAN
802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, fast roaming, 2.4G+5GHz,
hotspot -
WWAN
4G:FDD-LTE B1/2/3/4/5/7/8/12/17/20/28a&b/66
TDD-LTE B38/39/40/41
3G: WCDMA B1/2/4/5/8
2G: GSM B2/3/5/8 - GPS GPS/AGPS, GLONASS, BeiDou, Galileo
- Sensors Gyroscope, G-sensor, E-Compass, Light & Proximity Sensor
Software
- MDM Software SOTI, Ivanti, Wavelink, 42Gears, and MoboLink
Enclosure
- Dimensions ( W x H x D ) 185 mm x 70 mm x 23.8 mm
- Weight 295g with battery
Durability
-
Drop Specification
1.5m / 1.8m (with boot case)
- Sealing IP67
- Tumble test Tumble 600 times (1.6 ft./0.5 m)
Environmental
- Operating temperature -20°C to 60°C
- Storage temperature - 40°C to 70°C (without battery)
- Charging temperature 0°C to 45°C
- Relative Humidity 5% ~ 95% (non-condensing)
Accessories
-
Accessories
■ 3.85V 5200mAh battery (PN#1400-900067G)
■ 5V/2A Adaptor with US plug for Terminal (PN#1010-900058G)
■ 5V/2A Adaptor with Universal plugs for Terminal (PN#1010-900067G)
■ USB Type C Cable (PN#1550-905919G)

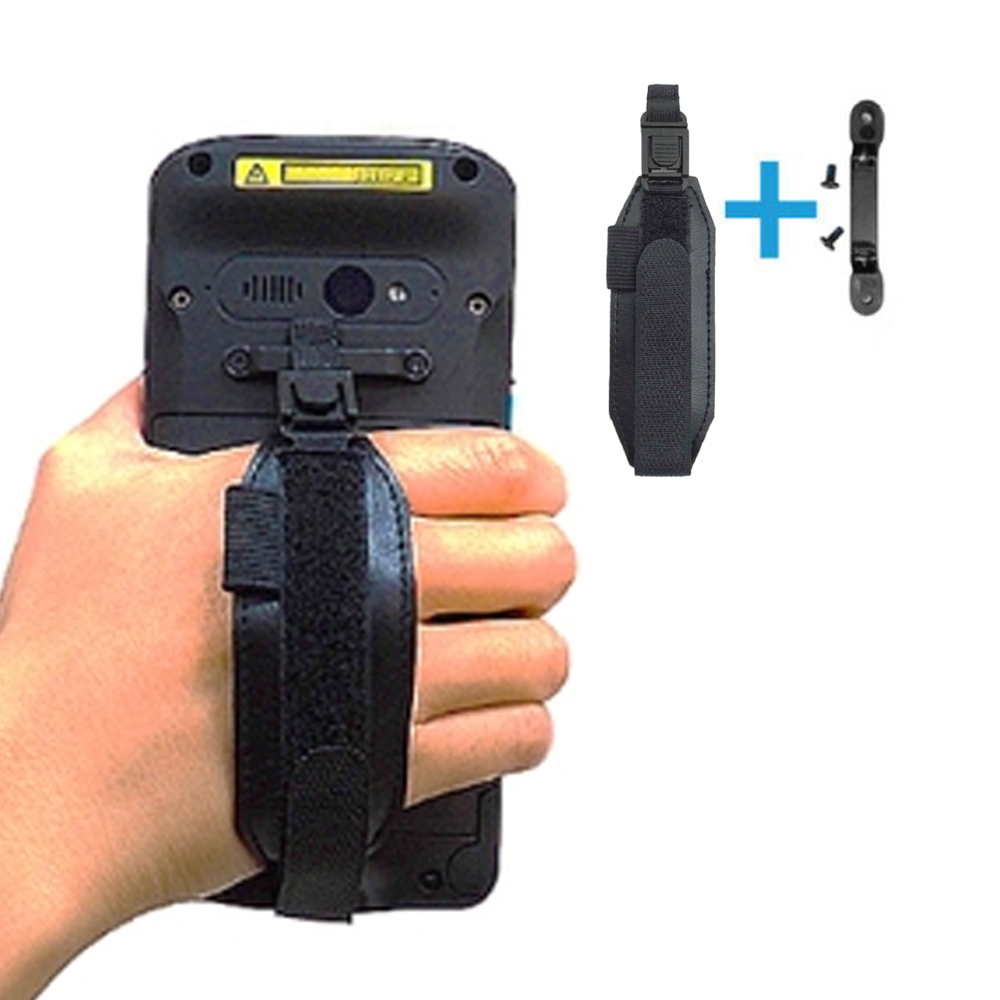

■ Hand Strap (PN#386185G)
■ Boot Case(PN#3210-900035G)
■ Gun Grip (PN#5500-900100G)
■ Single Slot Charging Cradle (PN#5000-900098G)
■ Single Slot USB Cradle(PN#5000-900099G)

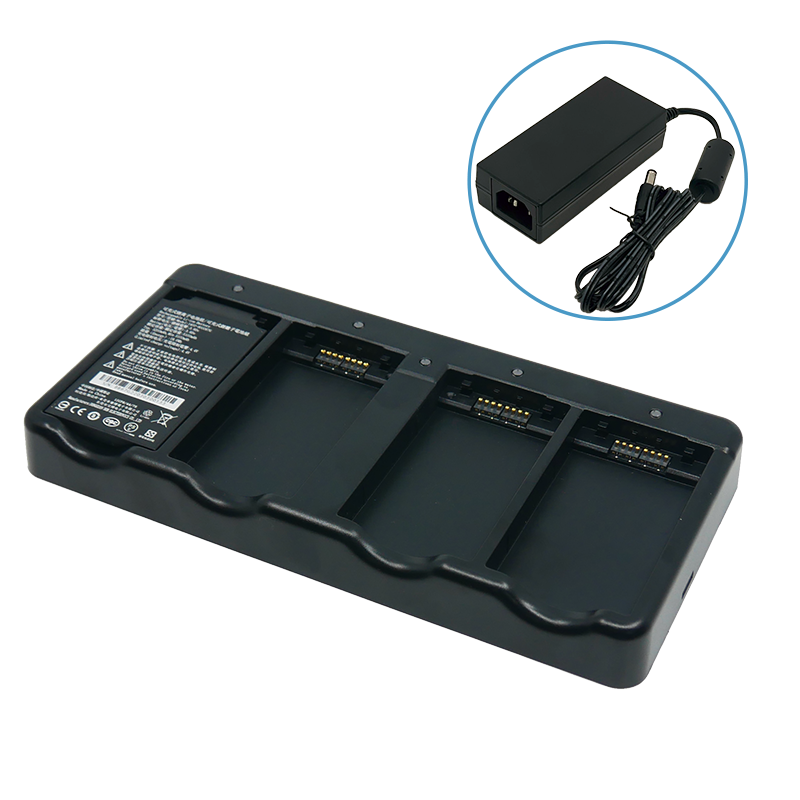

■ 4-slot Battery Charger (PN#5100-900035G)
■ 3 Pins Power Cord(US) for cradle (PN#1010-601551G)
■ 3 Pins Power Cord(EU) for cradle (PN#1550-602333G)
■ 3 Pins Power Cord(UK) for cradle (PN#1550-602689G)
■ Stylus with coil strap (PN#1979-900003G)
■ Glass Screen Protector (PN#401639G; PN#5400-900050G, 10pcs/ box)

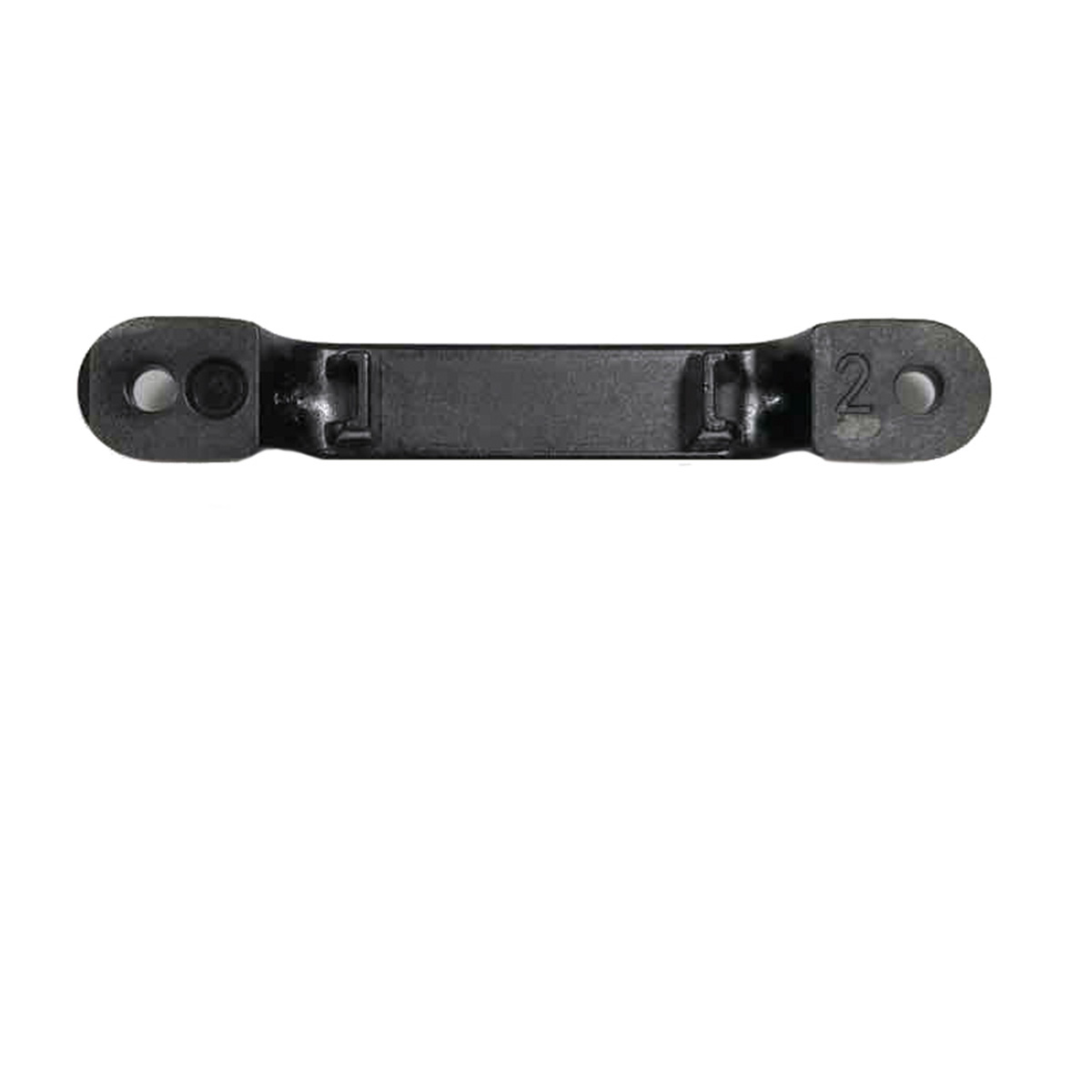

■ Bracket only (without screws) (PN#386239G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN# RP902-33E8S0G (EU) / RP902-43A8S0G (US) / RP902-43F8S0G (JP)
What comes in the box
-
The basic package contents
■ HT330 Terminal
■ Battery
■ Hand Strap
■ USB Cable
■ Quick Start Guide
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, CCC, SRRC, VCCI, TELEC, RoHS, BQB, N-Mark, BSMI
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
