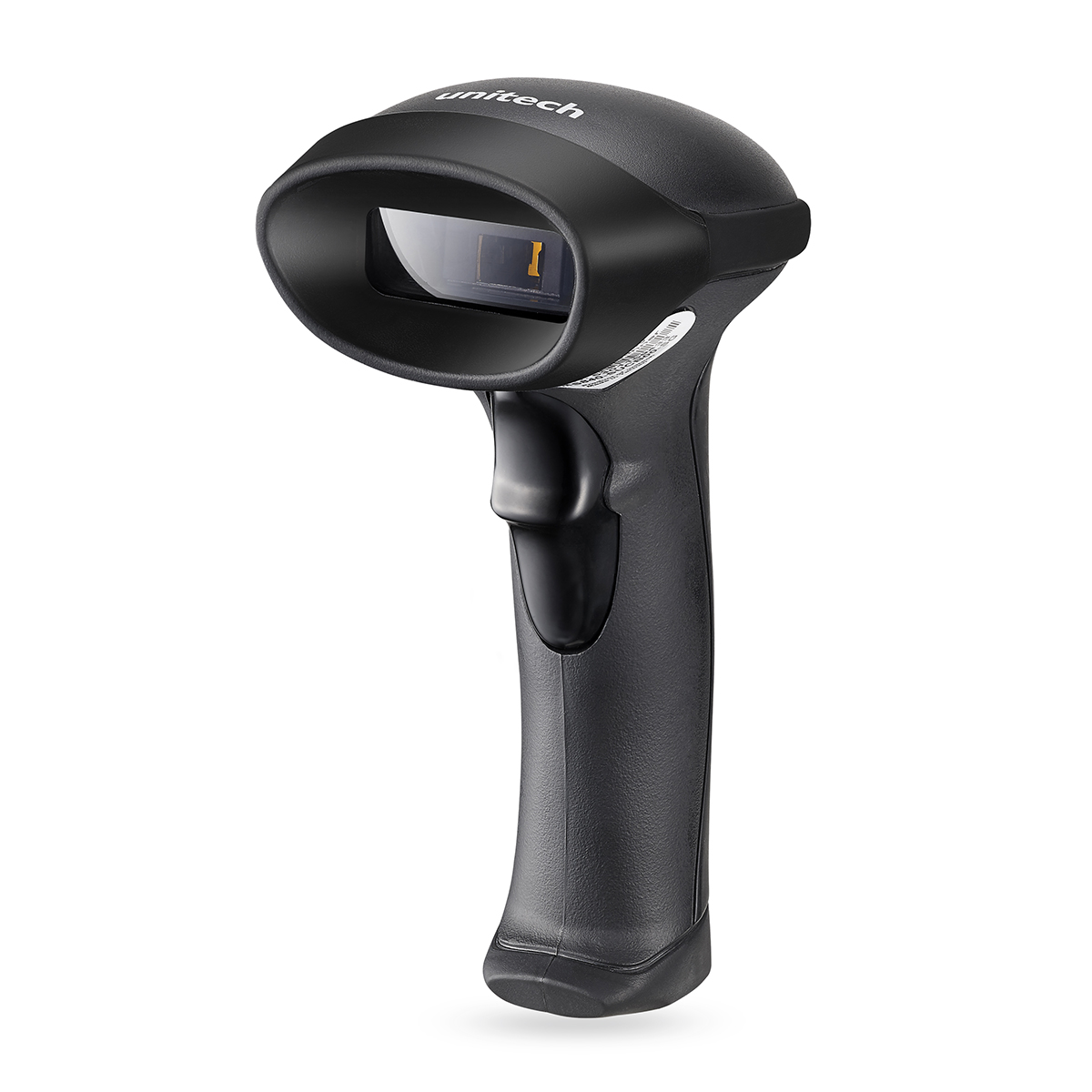

MS842P ESD
Wireless ESD-safe 2D Imager Scanner
The MS842P ESD (Electrostatic discharger) wireless 2D imager scanner is a high performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments.
-
Wireless
-
2D
-
ESD(Electrostatic Discharge)
-
USB Dongle
-
IP42
-
1.8M
-
Warehousing
-
Manufacturing
.jpg)
.jpg)
.jpg)
.jpg)
unitech’s MS84X ESD-safe scanner is made by internal mixed way with antistatic agent to protect MS84X series to be ESD safe to be used at ESD protected area including its cable. The body of the product and its cable can withstand ESD up to 109~1010 ohms per square and no containing of Chlorine material.
Features
• Withstands ESD up to 109~1010 ohms per square
• High-performance laser engineered decoder
• Supports 1D barcodes; including GS1 Data barcode
• Ergonomic design for maximum user comfort
• Multiple scanning modes
• Louder beeper for noisy environment operation
• 1.8-Meter / 6-Foot drop test
• IP42-rated13
|
|
|||||
Safeguard with unitech ESD-Safe Scanners |
|||||
|
Specifically designed to satisfy the stringent requirements of static-safe environments |
|||||
| Applications | |||||
Manufacturing | Gas Station Fuel grounds | Mining fields | Clean-rooms |
|||||
MS84X ESD Series | Successful Cases |
|||||
|
|
|||||
 |
ESD Protection
Like the Unitech MS840/MS842 line, the MS84x ESD (Electrostatic discharger) laser or imager is a high performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments. unitech’s MS84X ESD-safe scanner is made by internal mixed way with antistatic agent to protect MS84X series to be ESD safe to be used at ESD protected area including its cable. With the Internal mixed way, the body of the product and its cable can withstand ESD up to 10⁹~1010 ohms per square and no containing of Chlorine material. The Internal mixed way can provide longer time of ESD protection than external addition way due to external additional anti-static in the latter part of the packaging or processing process was wiped away. Internal mixed antistatic agent can continue to add antistatic agent to the plastic surface, to make up the surface due to wipe and the amount of antistatic agent consumed. It is a reliable tool to streamline your workflow in manufacturing environments.
Mobility and Reliability
While sustaining a 1.8 meter drop to concrete, MS84xP ESD incorporated with IP42 rugged design for protection against dust and moisture. In additions to offer a 10M operation range via its USB dongle, the simple plug-and-play design of MS84xP ESD makes the installation much easier without complicated set-up. Moreover, the built-in long life trigger of 10 million times guarantees a continuous productivity for best reliability. In addition to all of those benefits, the MS84xP ESD helps to store data in a buffer mode while it is out of range of the wireless signal, and also upload the data when it gets back in range.
Ergonomic, Durable Design
The rugged MS84x ESD not only offers superior extended range performance and versatility for scan-intensive industrial applications, but also it can withstand multiple 1.8-meter drops to concrete. As one of the strongest scanners in its class, the MS84x ESD has an IP42 rating, safeguarding it from moisture and dust, and is capable of operating in diverse applications including retail, industrial and commercial services.
Easy to Use
The MS84x ESD supports USB or wireless connectivity. With auto-adapting capabilities, MS84x ESD is easy to install and operate with simple connecting the scanner to the host device. Moreover, User-friendly cable replacement capability minimizes downtime and reduces the total cost of ownership.
Specification
Optical & Performance
- Sensor 2D imager Sensor
- Skew Angle ± 60°
- Pitch Angle Sensor ± 60°
-
Optical Resolution
SR: 5 mil (code 39), 6.7 mil (PDF417)
HD: 3 mil (co 4mil (0.1mm) de 39), 4 mil (PDF417) -
Depth of Field
Code 39 5 mil: 5.3 to 19.1 cm (SR)
PDF417 6.7 mil: 8.6 to 18 cm (SR)
Code 39 3 mil: 4.1 to 9.7 cm (HD)
PDF417 4 mil: 4.6 to 8.9 cm (HD)
Communication
- Radio Unlicensed 2.4GHz (Wireless)
- Wireless Coverage 10M( line of sight)
- Host Interface supported USB(via Cradle or dongle)
Functionality
-
Operation Mode
Trigger Mode, Flash Mode,
Presentation Mode, Buffer mode
Symbologies
- 1D Barcodes 1D: Code 39, Full ASCII Code39, Interleave 2 of 5, Standard 2 of 5, UPC A/E, Delta Code, Label Code, MSI/ Plessy, Codabar, Code 11, EAN8/13, Code 93, Code 128, EAN128, Code32,Toshiba Code, GS1 databar Code.
-
2D Barcodes
2D: PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec, RSS , Composite, TLC -39, MaxiCode. Postal: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)
Electrical
- Battery Capacity 1620mAh
- Operating Time Over 10 hours
Environmental
- Mechanical Shock 1.8m onto concrete (scanner only)
- IP Rating IP42
Accessories
-
Accessories(Optional)

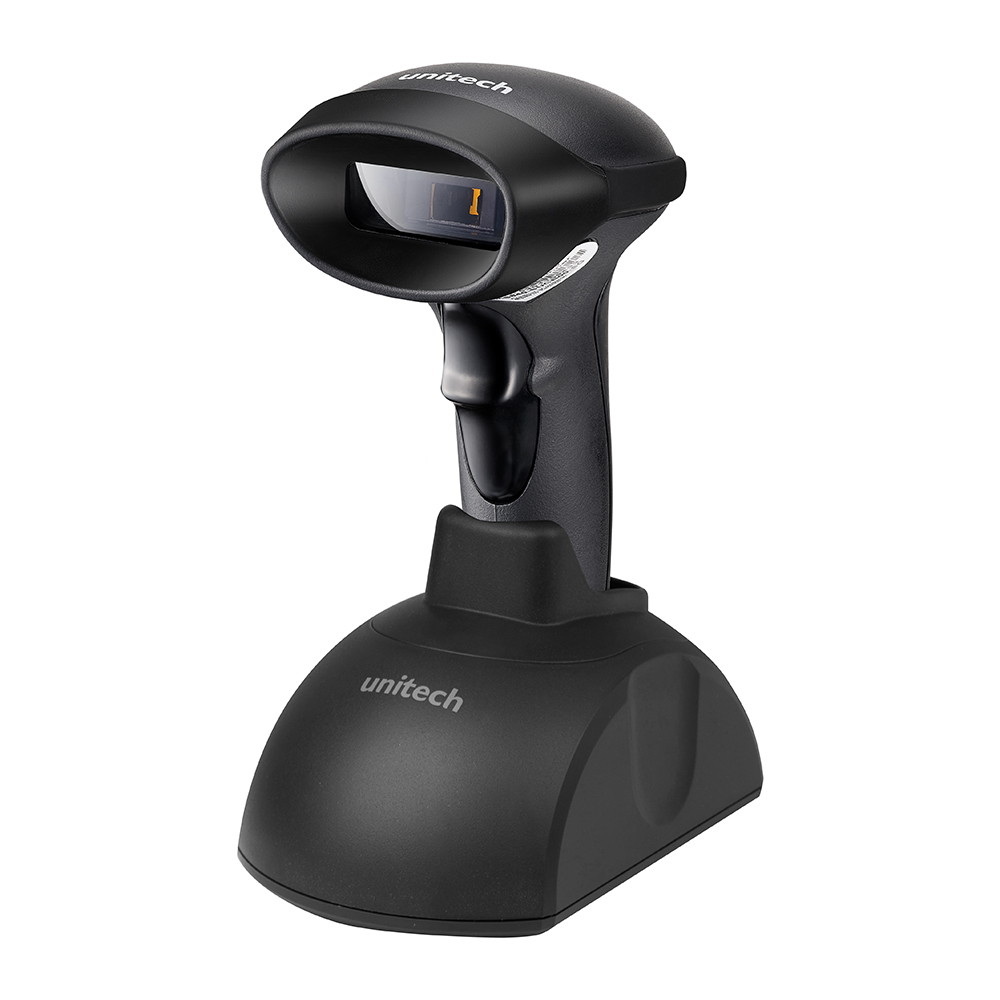

■ Cradle
■ Dongle
■ Battery pack
■ Power adapter
■ USB cable
